BIOSAN Orbital Shaker
High–Speed Multi Plate Shaker MPS-1 can be used in virtually any application by providing adjustable mixing of reagents in microtest plates, PCR plates, deepwell plates and test tubes (shaking tubes 0.
|

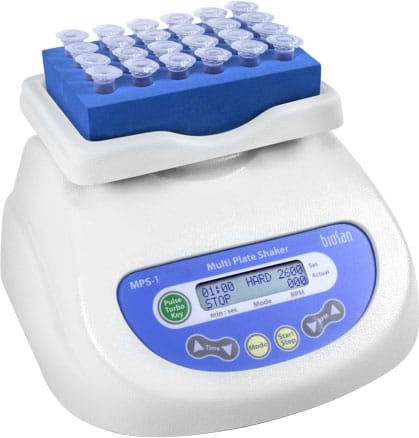

Biosan MPS-1, High–Speed Multi Plate Shaker
High–Speed Multi Plate Shaker MPS-1 can be used in virtually any application by providing adjustable mixing of reagents in microtest plates, PCR plates, deepwell plates and test tubes (shaking tubes 0.2 to 2 ml and vortexing any volume up to 50 ml).
The shaker is compact and user–friendly. The shaker is ideal for personal use.
MPS-1 features a head for vortexing a single tube.
Shaker can be used in cold rooms or incubators, operating at ambient temperature range +4°C to +40°C. Low voltage external power supply (12 V) provides electrical safety in humid environment.
MPS-1 features Pulse Mode mixing function that works on the principle of giving a periodic impulse: the tube is accelerated to the set speed, holds it for 3 seconds and then drops the speed to zero. This motion is repeated until the timer runs out. This method provides a constant state of resuspension of the particles inside a tube, as the acceleration is always changing. The advantage of this method is the high throughput of mixed samples compared to vortexing a single tube.
Features:
- Speed control range 300–3,200 rpm
- Smooth mixing with 3 mm orbit
- Mixing presets
- Pulse Mode mixing function
- Quiet operation — low noise at maximum speed
- High stability — stationary at maximum speed
- Universal platform holder for Deepwell plates and Microtest plates
- Additional platforms for semi- and unskirted PCR plates 200 μl as well as for tubes from 0.2 to 2 ml
- Can be used in cold rooms or incubators (temperature range +4°C to +40°C)
Specifications
Feature |
Specification |
Mixing speed control range |
300–3,200 rpm (100 rpm increment) |
Platform options |
-> |
For semi-/unskirted PCR plate or 96 microtest tubes 0.2 ml |
P-02/96 |
For 24 microtest tubes 1.5-2 ml |
P-2/24 |
For 32 microtest tubes 0.5 ml |
P-05/32 |
For 24 microtest tubes 0.5 ml and 48 microtest tubes 0.2 ml |
P-02/05 |
Universal platform for deepwell plates, 96-well microtest plates (U, V or flat bottomed), 384-well microtest plates |
+ |
Types of mixing presets: |
-> |
VORTEX |
3,200 rpm |
HARD |
2,600 rpm |
MEDIUM |
1,800 rpm |
SOFT |
1,000 rpm |
CUSTOM |
adjustable rpm |
Features a Pulse Mode mixing function |
+ |
Features a Vortex function |
+ |
Maximum load |
0.3 kg |
Orbit |
3 mm |
Acceleration time to maximum speed |
5 sec |
Digital time setting |
0–60 min (15 s increment) / non–stop |
Maximum continuous operation time |
8 hrs |
Noise level, not more |
65 dB |
Weight |
5.1 kg |
Overall dimensions (W×D×H) |
225 × 215 × 150 mm |
Input current/power consumption |
12 V, 800 mA / 10 W |
External power supply |
Input AC 100–240 V 50/60 Hz; Output DC 12 V |
|
|
|
