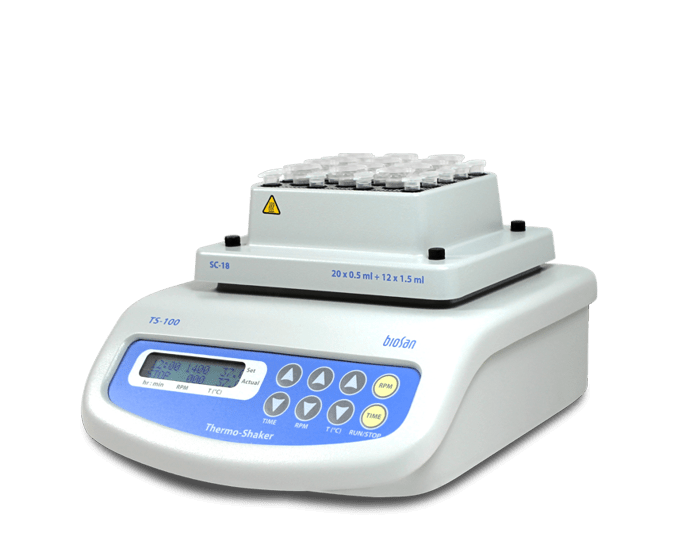

Biosan TS-100, Thermo-Shaker Overview

Thermo–Shaker TS-100 provides intensive mixing and temperature control of samples in microtest tubes or PCR plate. Functions of heating (up to +100°C) and mixing can be performed both simultaneously and independently, i.e. the unit implements three devices in one:

1. Shaker; 2. Dry–block Thermostat; 3. Thermo–Shaker.

TS-100 is used for DNA analysis sample preparation, for extraction of proteins, polysaccharides, lipids and other cellular components. Features of TS-100 meet the increased requirements of the user, including:

• Quickly reaches the set mixing speed and maintains same amplitude of rotation around the block;
• Stable maintenance of the temperature of a wide range over the entire surface of the block;
• LCD display shows the set and actual temperature, speed and time;
• Quiet engine operation, compact size, long service life.

Heating source is a printed heating board (12 V). Mixing is provided by movement of orbital type.

The instrument is applicable in:

• Genetic analysis — in extraction of DNA, RNA and further sample preparation;
• Biochemical study of enzymatic reactions and processes;
• Extraction of metabolites from cellular material.

Temperature Calibration Function

With the help of the temperature calibration function the user can calibrate the unit approx. ±6% of the selected temperature to compensate differences in the thermal behaviour of tubes from different manufacturers.
