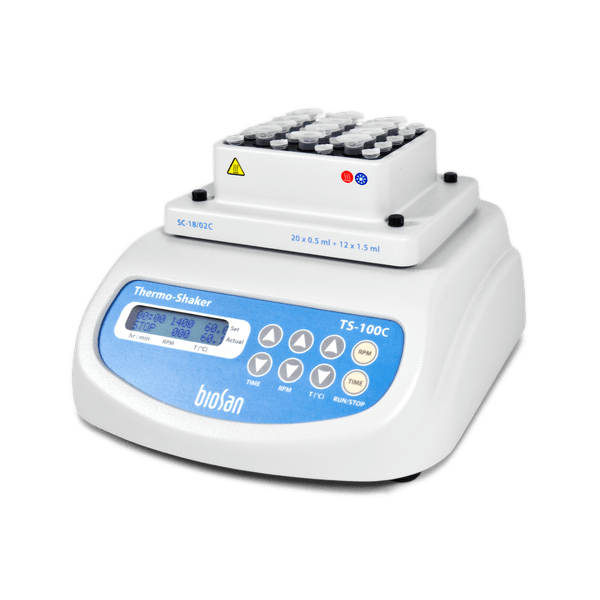

BIOSAN Thermo Shaker with Cooling
Thermo–Shaker TS-100C provides intensive mixing and cooling of samples in microtest tubes or PCR plate.
Biosan TS-100C, Thermo-Shaker with cooling for microtubes and PCR plates
Thermo–Shaker TS-100C provides intensive mixing and temperature control of samples in microtest tubes or PCR plate. This model of Thermo–Shaker differs from TS-100 with a possibility of cooling samples down to +4 °C. Features of TS-100C meet the highest expectations of users according to many parameters:
- Fast reaching of specified mixing speed and maintenance of equal amplitude of rotation throughout the Thermo–Shaker block;
- Stability of maintaining the preset temperature in a wide range throughout the Thermo–Shaker’s block surface;
- LCD display indicates preset and current values of temperature, speed and time of operation;
- Quiet motor operation, compact size, prolonged service life.
Functions of heating and mixing can be performed both simultaneously and independently.
There are five heating and cooling blocks available, including a block with a plastic lid for the PCR-plates. All blocks are mutually interchangeable and can be easily installed on Thermo–Shaker. The instrument is applicable in:
- Genetic analysis — in extraction of DNA, RNA and further sample preparation;
- Biochemical study of enzymatic reactions and processes;
- Extraction of metabolites from cellular material.
Temperature Calibration Function
With the help of the temperature calibration function the user can calibrate the unit approx. ±6% of the selected temperature to compensate differences in the thermal behaviour of tubes from different manufacturers.
Feature |
Specification |
Temperature setting range |
+4°C ... +100°C |
Temperature control range |
15°C below ambient ... +100°C |
Temperature setting resolution |
0.1°C |
Temperature stability |
±0.1°C |
Temperature accuracy at +37°C |
±0.5°C |
Temperature uniformity over the block |
-> |
at +4°C |
±0.6°C |
at +37°C |
±0.1°C |
at +100°C |
±0.3°C |
Average cooling speed from +100°C to +25°C |
5°C/min |
Average cooling speed from +25°C to +4°C |
1.8°C/min |
Temperature calibration coefficient range |
0.936...1.063 (± 0.063) |
Speed control range |
250–1400 rpm |
Acceleration time |
3 s |
Orbit |
2 mm |
Microprocessor controlled temperature, mixing speed and operation time |
+ |
Display |
LCD, 16 × 2 signs |
Digital time setting |
1 min–96 hrs (1 min increment) |
Maximum continuous operation time |
max. 96 hours |
Overall dimensions (W×D×H) |
205x230x130 mm |
Weight |
4.2 kg |
Input current/power consumption |
12 V, 4.9 A / 60 W |
External power supply |
Input AC 100–240 V; 50/60 Hz; Output DC 12 V |
|
|
|
