EPPENDORF ThermoMixer® F
These products are the perfect choice for mixing and heating established routine applications. The Eppendorf ThermoMixer F0.5/F1.5/F2.0 and FP have a fixed block for 0.5/1.5/2.0 mL tubes and plates, respectively. Reliable prevention of condensate formation in small vessels can be achieved with the heated lid Eppendorf ThermoTop (optional).
Item# 5385000067:With thermoblock for microplates and deepwell plates, including lid, 220 – 240 V/50 – 60 Hz.
Perfect condensation prevention when dealing with small volumes: The Eppendorf ThermoTop with condens.protect technology heated lid avoids condensation on tube lid and tube wall. It is compatible with ThermoMixer C/ ThermoStat C with SmartBlock plates and lab vessels up to 2 mL and ThermoMixer F 0.5/F1.5/F2.0/FP.
Perfect condensation prevention when dealing with small volumes: The Eppendorf ThermoTop with condens.protect technology heated lid avoids condensation on tube lid and tube wall. It is compatible with ThermoMixer C/ ThermoStat C with SmartBlock plates and lab vessels up to 2 mL and ThermoMixer F 0.5/F1.5/F2.0/FP.
Whether you regularly work with 1.5 mL reaction vessels or plates (MTP and DWP) - the customized systems from Eppendorf offer you the perfect solution for your special applications. The devices combine precise heating and mixing with the highest stability, even at maximum mixing frequency. You can also carry out independent mixing and incubation steps.
Suitable Applications
Growth of bacteria and yeasts
Enzymatic reactions
Transformation of bacteria strains and plasmids
Denaturation of DNA, RNA and proteins
Lysis reactions at 100°C
Labeling of nucleic acids and proteins
Proteinase K digestion of cells and tissues
Resuspension of pellets
Mixing protein quantification assays
ELISA assays
Features

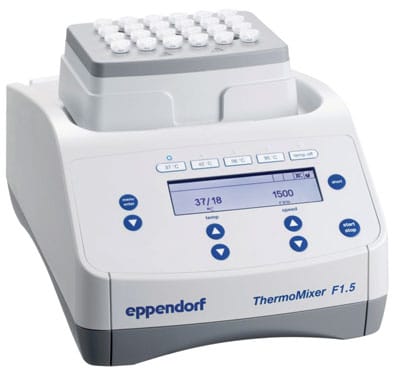

Eppendorf ThermoMixer F1.5
Heating and mixing in 1.5 mL reaction vessels
Efficient mixing to 1,500 rpm
Excellent mixing performance due to unique 2DMix-Control technology
Anti-spill technology prevents lid wetting and cross-contamination
Reliable prevention of condensate formation with the new ThermoTop (condens.protect)
Simple and intuitive operation using predefined temperature keys (37 °C, 42 °C, 56 °C and 95 °C)
Very quiet operation via precise fit of vessels in block
Heat-insulated SmartBlocks for ergonomic operation - you won't burn your fingers

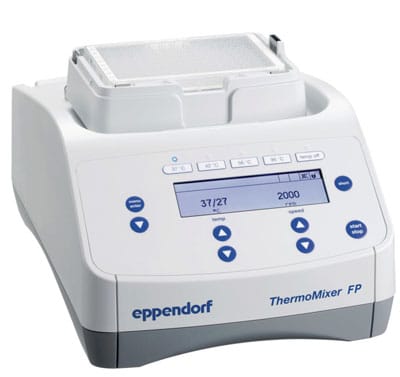

Eppendorf ThermoMixer FP
Heating and mixing in plates
Efficient mixing up to 2,000 rpm
Excellent mixing performance due to unique 2DMix-Control technology
Anti-spill technology prevents lid wetting and cross-contamination
Reliable prevention of condensate formation with the new ThermoTop (condens.protect®)
Simple and intuitive operation using predefined temperature keys (37 °C, 42 °C, 56 °C and 95 °C)
Very quiet operation via precise fit of vessels in block
Heat-insulated Eppendorf SmartBlocks for ergonomic operation - you won't burn your fingers
2DMix-Control technology describes the ability of the MixMate, ThermoMixer C and ThermoMixers F to mix small sample volumes in various plate and tube formats quickly and in a controlled manner. To achieve this, the interplay of all crucial factors for efficient and controlled mixing, have been optimized. And these are: <br />- Generation of sufficient mixing energy: due to an orbital mixing movement at a high mixing speed and a relatively large mixing radius (1.5 mm) the devices generate enough mixing energy (analogous to g-force in centrifuges) to mix even the smallest volumes efficiently.<br />- Minimized loss of mixing energy: special attention was paid to reducing inherent vibration. Smooth operation combined with reliable stability ensures that all the mixing energy is available for mixing and not wasted through transmission of vibrations to the device or its surroundings.<br />- Controlled transmission of energy from the device to the sample: Minimizing vertical movements enable a plane, 2-dimensional (2D) mixing stroke. This, in conjunction with the reliable plate and tube holders and SmartBlocks, prevents uncontrolled chaotic movements and allows all formats to be held securely, even at high mixing frequencies.
Do not use corrosive cleaning agents, aggressive solvents or abrasive polishes. Do not use any aggressive chemicals on the device or its accessories, such as strong and weak bases, strong acids, acetone, formaldehyde, halogenated hydrocarbons or phenol. If the device becomes contaminated with aggressive chemicals, clean it immediately with a mild cleaning agent. Use Lint-free cloth, mild, soap-based lab cleaner and dist. Water. Please refer to your operating manual chapter Maintenance.
The best possible temperature accuracy can be guaranteed by individually adjusting a SmartBlock. Optimized temperature control for each block type keeps temperature overshoots and deviations caused by external interferences to a minimum. To guarantee optimal performance over the entire period of use, Eppendorf offers a preventive maintenance program and certification services: your Eppendorf ThermoMixers, ThermoStat C as well as the SmartBlocks are regularly cleaned, checked and adjusted. Additional information is available at: https://www.eppendorf.com/epservices<br /> . Customers can also verify the temperature accuracy by themself. Eppendorf provides for that purpose the Temperature Verification System – Single Well for Eppendorf Mastercyclers (0056 000.003) in combination with the 384 well Sensor (0056 002.006).
Yes, one can use the devices in a cold room but some safety hints should be attended: Condensate can form in the device after it has been moved from a cool environment to a warmer environment. Wait at least 3 hours after positioning the device. Plug the device only after this time has elapsed. In case the device is positioned continually in a cold room and was switched off for a longer time – over night for instance - switch it on for at least 1 h before starting a mixing process.
The ThermoMixers F possess a fix installed SmartBlock and can only be used with the appropriate microtest tubes or plates, such as MTP’s, DWP’s or skirted plates complying the SBS standard. For using PCR plates our SmartBlocks PCR 96 and PCR 384 in combination with ThermoMixer C is the proper choice.
Please check if a compatible SmartBlock has been attached and the ThermoTop has been vertically placed from above. The centering pins behind the heating/cooling plate have to fit perfectly into the recesses of the ThermoTop. Place the ThermoTop once again upon the device. In case the device shows still the error message, please contact the technical service.
SmartBlock plates and ThermoMixer FP (with the fixed SmartBlock plates) are dedicated for using MTP’s, DWP’s and also other skirted plates which meet the SBS standard. For optimal usage of PCR plates the SmartBlock PCR 96 and PCR 384 in combination with ThermoMixer C or ThermoStat C is the proper choice. These SmartBlocks possess conical bores which surround the conical wells of PCR plates properly for a perfect temperature transition.
