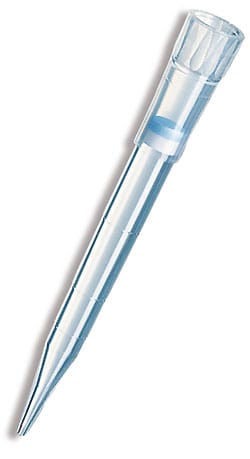

ep Dualfilter T.I.P.S.®
ep Dualfilter T.I.P.S. Filter Tips – The ultimate protection of pipette and sample against unintentional and unnoticed contamination by aerosols, drops and splashes.
Item# 0030077539:PCR clean and sterile, 2 – 20 µL, 53 mm, yellow, 960 tips (10 racks × 96 tips).
The new Eppendorf ep Dualfilter T.I.P.S.® are the first filtertips with a two phase barrier filter for airborne contamination protection. These barrier tips are manufactured to the highest possible quality from pure, non recycled materials under cleanroom conditions. They are characterised by defined flow dynamics, low wettability and high thermal stability. They are certified pyrogen free and PCR clean (free from human DNA, DNase, RNase and PCR-inhibiting substances).
Unique two-phase filter protection with ep Dualfilter Barrier Tips®!
ep Dualfilter T.I.P.S.® contain well-defined different pore sizes within the two filter layers. The white layer which faces the sample retains drops, splashes and aerosols. The blue layer above it forms a highly-effective double barrier, that reliably binds even biomolecules.
Features
ep Dualfilter T.I.P.S. functionality
Without any kind of filter (A) the pipette is exposed to contamination by sample and aerosols.
Conventional single layer filters (B) do not fully block particles and molecules.
Only ep Dualfilter Barrier Tips (C) provide reliable protection against even the finest impurities.
The two-phases effect!
Two filter layers provide dual protection barrier for pipette and sample
Two filter layers provide dual protection barrier from aerosols and biomolocules
Free from PCR inhibitor additives
Patent pending Barrier Tips technology
All tips are provided sterile, Eppendorf PCR clean and pyrogen-free
Batch certified
Even more, ep Dualfilter Barrier Tips are characterised by:
Defined flow dynamics
Low wettability
High thermal stability
Leak proof seal*
Minimum attachment and ejection forces*
*When used in combination with Eppendorf pipettes.
Techncial Details – Compatibility chart for ep Dualfilter T.I.P.S Barrier Tips
Eppendorf Research®
Pipette/epT.I.P.S. Filter (µL)
0.1 – 10 S
0.1 – 10 M
0.5 – 20 L
2 – 20
2 – 100
2 – 200
20 – 300
50 – 1.000
100 – 5,000
1 – 10 mL/L
Fixed volume
10 µL – 100 µL
2
200 µL – 1,000 µL
Adjustable volume
0.1 µL – 2.5 µL
4
0.5 µL – 10 µL
2 µL – 20 µL
4
10 µL – 100 µL
20 µL – 200 µL
1
100 µL – 1,000 µL
500 µL – 5,000 µL
1 – 10 mL
4
Multi-channel
0.5 µL – 10 µL
10 µL – 100 µL
30 µL – 300 µL
Eppendorf Reference®
Pipette/epT.I.P.S. Filter (µL)
0.1 – 10 S
0.1 – 10 M
0.5 – 20 L
2 – 20
2 – 100
2 – 200
20 – 300
50 – 1.000
100 – 5,000
1 – 10 ml/L
Fixed volume
1 µL – 10 µL
10 µL – 100 µL
200 µL – 1,000 µL
3
500 µL – 2,500 µL
Adjustable volume
0.1 µL – 2.5 µL
4
0.5 µL – 10 µL
2 µL – 20 µL
1
1
2 µL – 20 µL
10 µL – 100 µL
50 µL – 200 µL
1
50 µL – 250 µL
100 µL – 1,000 µL
500 µL – 2,500 µL
Eppendorf Research® pro
Pipette/epT.I.P.S. Filter (µL)
0.1 – 10 S
0.1 – 10 M
0.5 – 20 L
2 – 20
2 – 100
2 – 200
20 – 300
50 – 1.000
100 – 5,000
1 – 10 ml/L
Single-channel
0.5 µL – 10 µL
5 µL – 100 µL
20 µL – 300 µL
50 µL – 1,000 µL
100 µL – 5,000 µL
Multi-channel
0.5 µL – 10 µL
5 µL – 100 µL
20 µL – 300 µL
50 µL – 1,200 µL
1
EDOS®
Pipette/epT.I.P.S. Filter (µL)
0.1 – 10 S
0.1 – 10 M
0.5 – 20 L
2 – 20
2 – 100
2 – 200
20 – 300
50 – 1,000
100 – 5,000
1 – 10 ml/L
Pip 10 µL
Pip 100 µL
Pip 1,000 µL
Multi 50 µL
Multi 300 µL
Multi 1,200 µL
1
1 Restricted volume.
2 Only for Research fixed volume 10 µL, 20 µL.
3 Not suitable for Reference fixed volume 200 µL and 250 µL.
4 In this instance, the error limits quoted for the pipette in the technical data may increase.
All products certified with "PCR clean" are tested free of human DNA, DNase, RNase and PCR inhibitors. The following applies from our point of view: Where no human DNA is detected, there can also be no RNA, which is considerably more unstable.
For molecular-biological requirements Eppendorf offers a new standard for uniform purity specifications. All consumables marked with the "Certified PCR Clean” label are guaranteed free of human DNA, DNase, RNase and PCR inhibitors.
Due to the modularization of purity grades, some products are labeled with more than one purity grade symbol. For example, the epDualfilter T.I.P.S. has the double seal "PCR clean "+ "Sterile" and the UVette the double seal "PCR clean" + "Protein-free" on the packing. The certification remains unaffected by the modularization.
Yes, the batch-specific purity grades can be downloaded at our <a href="https://www.eppendorf.com/certificates" target="_blank">certificates homepage</a>.
Yes, if no batch attachment is required for the application, products of the old and new modular purity grades can be used, as their specifications are the same.
Following certificates are available: Certificate of Quality (quality assurance, trace metals, ep Dualfilter TIPS, HEPA standard, statement on BSE/TSE), EC conformity declaration, certificate of purity (PCR clean) and a batch-specific sterility certificate for ep Dualfilter TIPS in sterile purity grade is available for download on our website.
No, ep Dualfilter TIPS are not suitable for filtering liquids. They prevent aerosols migrating through the filter. In relation to penetrating fluid, Filtertips develop such strong adhesive forces that the movement of liquid is stopped immediately.
