EPPENDORF Deepwell Plates
Eppendorf Deepwell Plates 96 and 384 are high performance plates fulfilling highest requirements of all manual and automated applications. They combine innovative features, like the OptiTrack® matrix, with thoroughgoing quality for which Eppendorf consumables are globally known as a premium standard.
Get more! Eppendorf Deepwell Plates 96 and 384 feature innovative well geometry, ergonomic design as well as sturdy and precise construction. They set ultimate standard in manual and automated sample handling, storage and transport. Reach a new level of work efficiency and sample saving. Their perfect design and well geometry enables high-speed pipetting/centrifugation, excellent mixing and maximizing volume recovery.
Eppendorf Deepwell Plate
Number of wells
Max. volume
Filling volume
96/2000 µL
96
2,400 µL
50–2,000 µL
96/1000 µL
96
1,200 µL
30–1,000 µL
96/500 µL
96
700 µL
30–550 µL
384/200 µL
384
240 µL
20–225 µL
RecoverMax® well design: Maximizing the recovery of valuable samples and minimizes contamination risk
OptiTrack® matrix: Alphanumeric coding that provides easy identification of individual wells, thus reducing the risk of error.
g-Safe®: High centrifugal stability and chemical resistance
Automation optimized: High precision SBS format with multiple sealing options, easily stacked and stable
Four Eppendorf quality standards: Standard, Sterile, DNA/RNA LoBind and Protein LoBind
Get more! Eppendorf Deepwell Plates 96 and 384 are made from virgin polypropylene and are characterized by high temperature and chemical resistance. The plates fulfill current guidelines of: SBS*, EN ISO 9001 and EN ISO 13485. Certificates are available at Support part of this page.
The new well design features smoothed corners and transitions at the walls and at the bottom of the wells. Due to RecoverMax design the liquid collects at the lowest point at the center of the wells.
The new design prevents interfering sample deposits from accumulating in the corners, especially in rectangular wells. Benefit: considerably reduced liquid and sample losses, efficient sample mixing and wicking reduction.
Eppendorf's OptiTrack matrix makes work easier by providing a unique combination of colored borders with dark, alphanumeric labeling. The five colors facilitate assignment to persons, laboratories, work steps, or experiments. The wells themselves are colorless and transparent - for a perfect view inside the wells or inspecting the underside of the plate.
Eppendorf Plate® Deepwells 96 and 384 in DNA LoBind and Protein LoBind are also Eppendorf PCR clean. This means the plates can be used directly for PCR setup. They are free of human DNA, DNase, RNase, and PCR inhibitors.

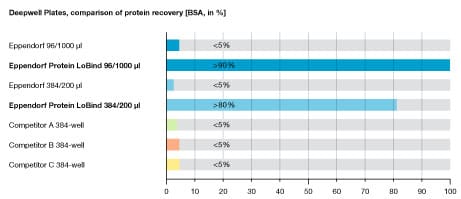

In deepwell plates with conventional surface properties, up to 95% of the material is lost after 24 h (in this case: BSA) due to nonspecific interactions. However, with Plate Deepwell 96/1000 µL Protein LoBind and 384/200 µL Protein LoBind the maximum loss is only 10% and 20%, respectively (see below).
The Eppendorf Plates® Deepwell 96 and 384 are compatible with all standard automation platforms. They are perfectly suitable for routine and high-throughput processes. Resistant to temperature and chemicals, they can be used in a wide range of applications, such as serial dilutions, sample and reagent transfer, nucleic acid extractions, assays and liquid storage.
Valuable samples have to be stored safely and reliably. With Eppendorf Plates® Deepwell 96 and 384 you can depend on that safety and reliability. The flat rims of the wells and the absolutely flat surfaces provide ideal conditions for manual and automated sealing. For recommended sealing options please refer to the table.
Recommended sealing options for Eppendorf Plate® Deepwell 96 and 384.
Adhesive seal
Heat-Sealing
Sealing mats
Eppendorf Plate®
- Self-adhesive
- Certified PCR clean
- Transparent
- Recyclable
Deepwell 96/2000 µL
Deepwell 96/1000 µL
Deepwell 96/500 µL
Eppendorf PCR Film
Eppendorf PCR Foil
Eppendorf Heat Sealing Film**
Eppendorf Sealing Mats
Deepwell 384/200 µL
Eppendorf PCR Film
Eppendorf PCR Foil>
Eppendorf Heat Sealing Film**
Sealing mats*
* Sealing mats recommended by other manufacturers.
** Heat Sealing Films cannot be removed or pierced.

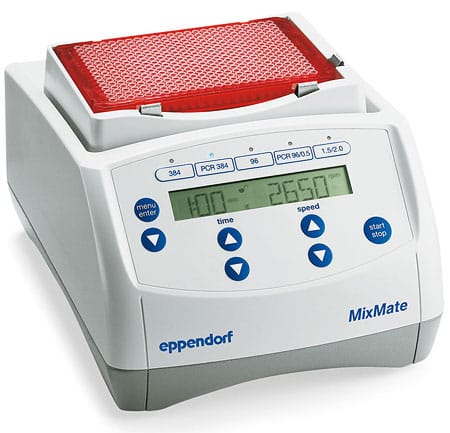

Compact and amazingly versatile, benchtop MixMate can be used for virtually any mixing application. It accommodates micro test tubes, PCR plates, deepwell plates and MTPs. It features an integrated vortexing function and an operating concept that is as simple as it is intelligent.
2DMix-Control: uniquely fast and controlled mixing movement.
Current findings show that rpm speed is not the only determining factor in efficiently mixing small volumes. More often, the perfect mixing process occurs when parameters such as speed, type of mixing movement (e.g., orbital) and the mixing radius are optimised to smoothly run together. Eppendorf has perfected how these parameters interact in MixMate, and we have named this feature 2DMix-Control.
Unfortunately this product has been subjected to a recall and we are awaiting arrival of the new, improved model.
Eppendorf Plate® Deepwell are of polypropylene. All parts of the plate (colorless/colored parts and coding) have the same high resistance against chemicals and are resistant against many organic solvents. For details please see our Application Note no. 56: The best material for original Eppis. In case of doubt please contact Eppendorf Application Support: support@eppendorf.com.
Yes, but the dimensional precision of the plates can be affected. If the use of sterile plates is needed we recommend Eppendorf Plate® Deepwell Sterile.
Eppendorf Plate® Deepwell Standard and LoBind Quality can be centrifuged up to 6000 x g. Eppendorf Plate® Deepwell Sterile withstand up to 5000 x g. For details refer to the instruction manual.
Please see for that Plate Dimensions included in the Technical Information on our <a href="https://www.eppendorf.com/DWP" target="_blank">homepage</a>.
Yes - Eppendorf Plate® Deepwell are optional available with Barcode. Detailed ordering information can be found under our <a href="https://www.eppendorf.com/DWP" target="_blank">homepage</a>.
